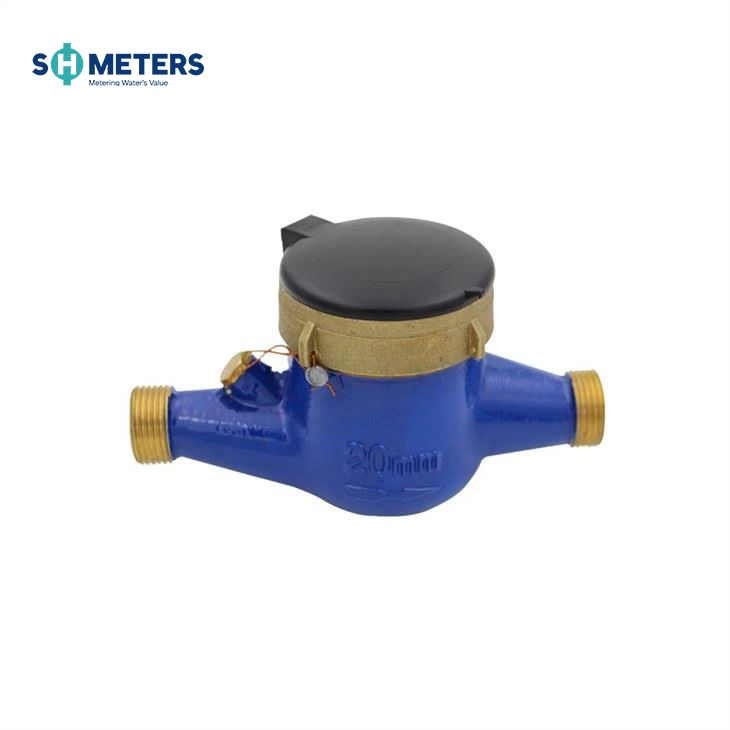

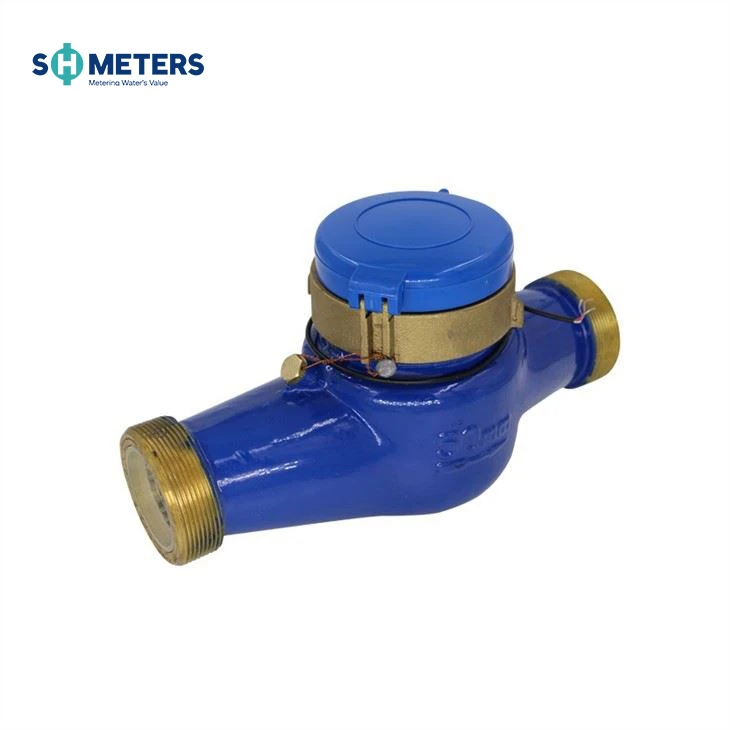

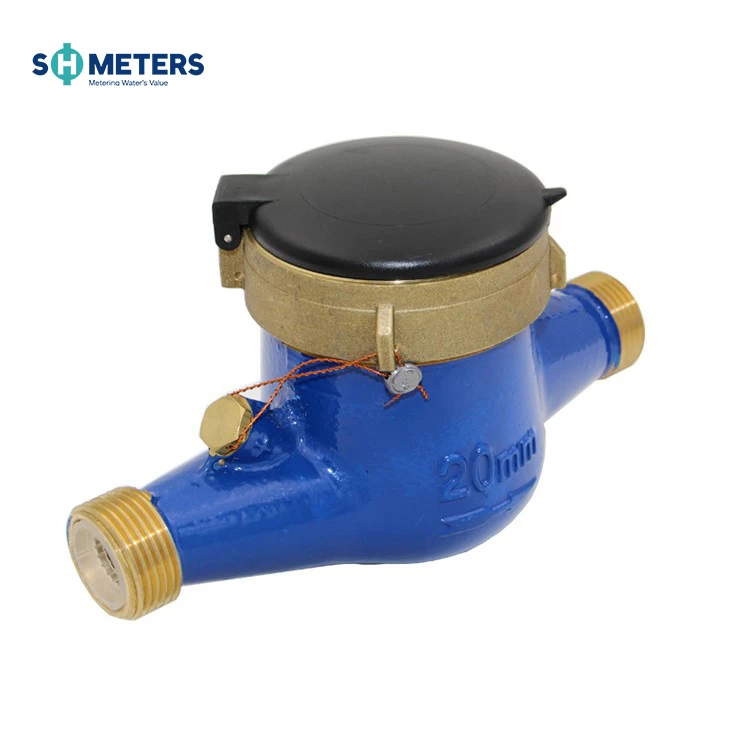

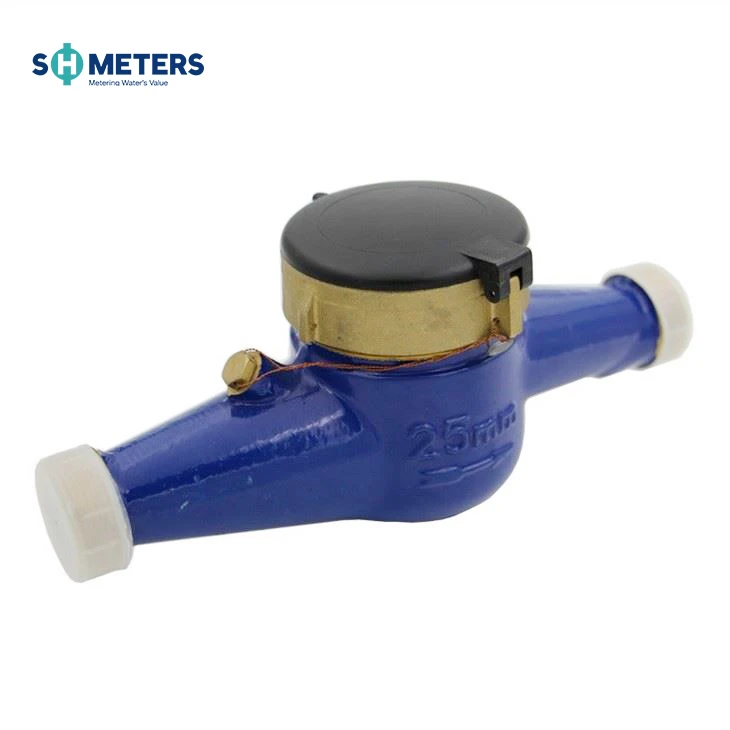

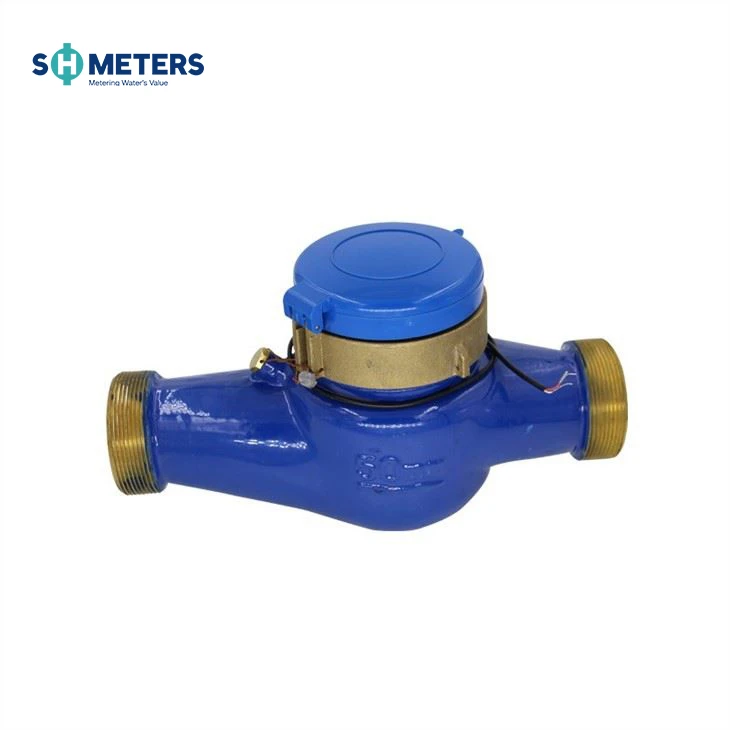

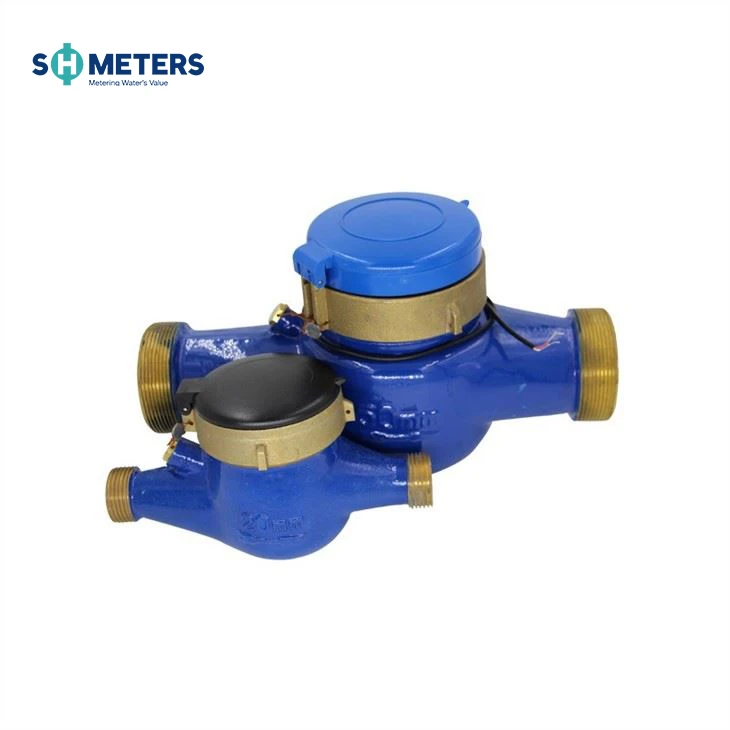

Multi Jet Dry Dial Plastic Water Meter
प्रमाणपत्र: ISO9001: 2000 गुणवत्ता प्रणाली प्रमाणपत्र
Application
Measuring the volume of cold potable water passing through the pipeline.
प्लास्टिक वॉटर मीटर विशेषताएं
Completely plastic shell, solid and robust design, long service guaranteed.
High quality materials corrosion resistance.
Pole ring magnet polymer coating as protection against deposits.
The measuring mechanism can be exchanged.
Anti-magnet.
Inside calibration device.
Large measuring range high flow accuracy.
Steady curve characteristics.
Measuring accuracy is up to ISO4064, Class B.
अधिभार प्रवाह दर: QS=2Qp (Qn=मामूली प्रवाह दर)
काम की परिस्थिति
Water temperature: Less than or equal to 40ºC
पानी का दबाव: 1.6MP (16bar) से कम या उसके बराबर
अधिकतम अनुमेय त्रुटि
In the lower zone from qmin inclusive up to but excluding qt is ± 5 percent
In the upper zone from qt inclusive up to and including QS is ± 2 percent
सामान
Optional: Both brass thread connections and plastic thread connections are available.
